Brand model Body Standard Size Product Description and Usage Area Made of oven-painted steel chassis. Motor-controlled lifting and lowering feature. Cordless use thanks to its rechargeable battery. It can be disassembled to take up minimal space. Can be used indoors and outdoors. Body Structure Oven-painted steel body Body Color The body is cream oven paint, the upholstery is dark blue. Disassembly Feature Disassembled body structure Rear Wheel 4'' gray colored silicone front wheel that does not leave any marks on the ground, can rotate 360 degrees and is locked. Front Wheel 3'' (7.5 cm) gray colored rear wheel that does not leave any marks on the ground and can rotate 360 degrees around itself. Brake System Rear wheel with brake system. Documentation CE, TSE, ISO 13485:2012, ISO 9001:2015 Guarantee There is a 2-year product warranty and a 10-year spare parts availability guarantee. Accessories A sling designed for the purpose, Engine Control System Engine mounted control panel and hand control Working Voltage 220V-50Hz Engine DC24V 8000N Battery DC24V 5AH Charger 24V-1A charger / 5 hours Charging Time Altitude Level 117cm Wheel Height 11.5 cm Lifting Height 85-190 cm Width 59.5-85 cm Length 120 cm Disassembled Dimensions 124*63*35cm Carrying Capacity (Max.) 150 kg Net Weight 40 kg.

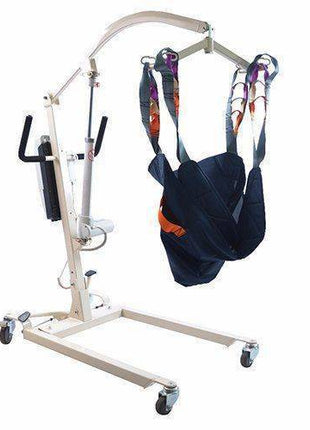

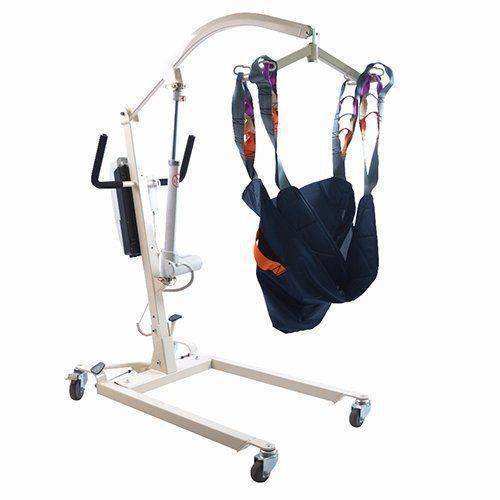

leo Patient Transport Lift
